NPM-W2
NPM-W2
Higher productivity and quality with printing, placement and inspection process integration
Depending on the PCB you produce, you can select High-speed mode or High-accuracy mode.
For larger boards and larger components

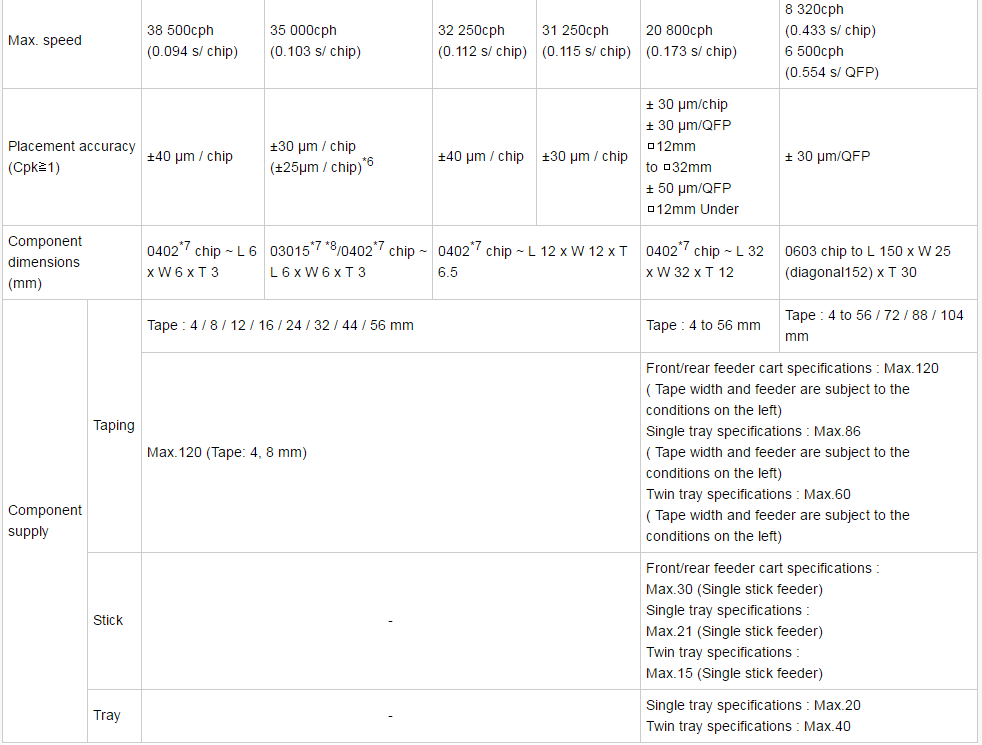

PCBs up to a size of 750 x 550 mm with component range up to L150 x W25 x T30 mm
Higher area productivity through dual lane placement
Depending on the PCB you produce, you can select an optimal placement mode - "Independent" "Alternate” or “Hybrid”

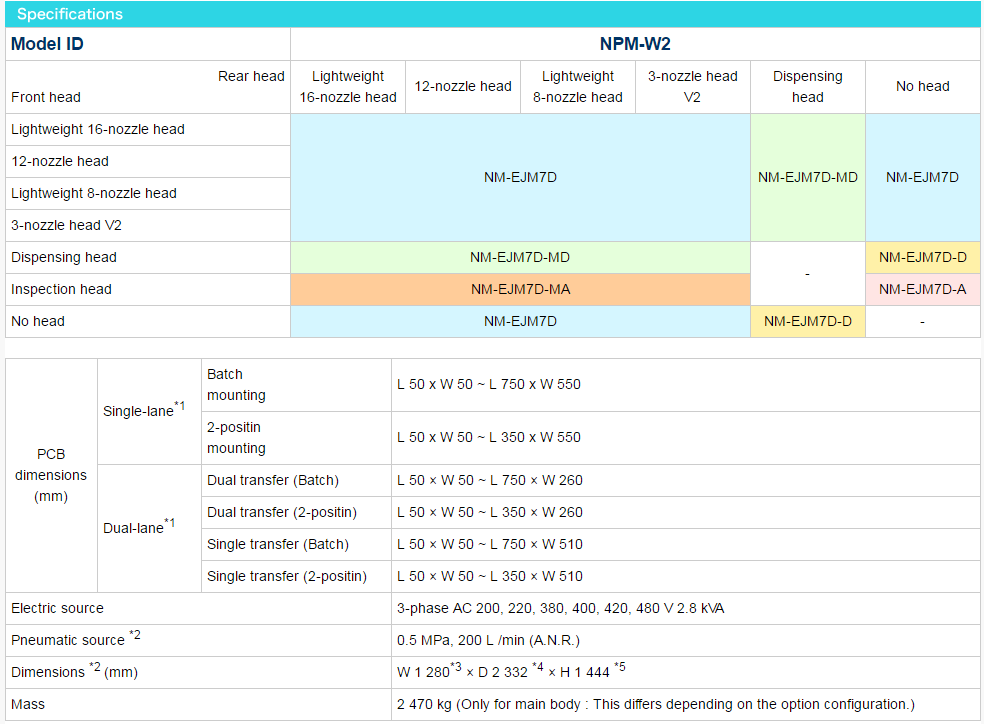

| *1 | : | Please consult us separately should you connect it to NPM-D3/D2/D. It cannot be connected to NPM-TT and NPM. |
| *2 | : | Only for main body |
| *3 | : | 1 880 mm in width if extension conveyors (300 mm) are placed on both sides. |
| *4 | : | Dimension D including tray feeder : 2 570 mm Dimension D including feeder cart : 2 465 mm |
| *5 | : | Excluding the monitor, signal tower and ceiling fan cover. |
| *6 | : | ±25 μm placement support option.(Under conditions specified by PSFS) |
| *7 | : | The 03015/0402 chip requires a specific nozzle/feeder. |
| *8 | : | Support for 03015 mm chip placement is optional. (Under conditions specified by PSFS:Placement accuracy ±30 μm / chip) |

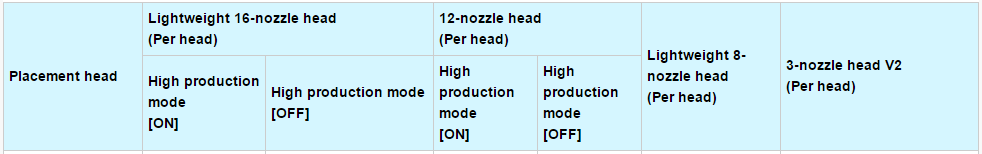

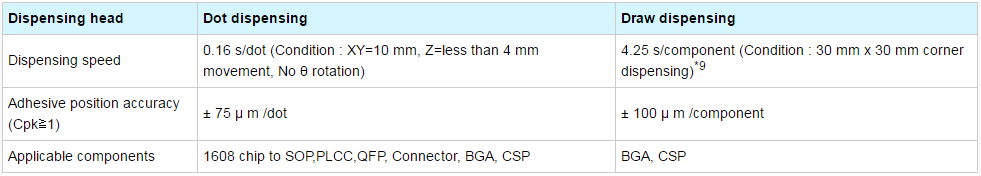

| *9 | : | A PCB height measurement time of 0.5s is included. |

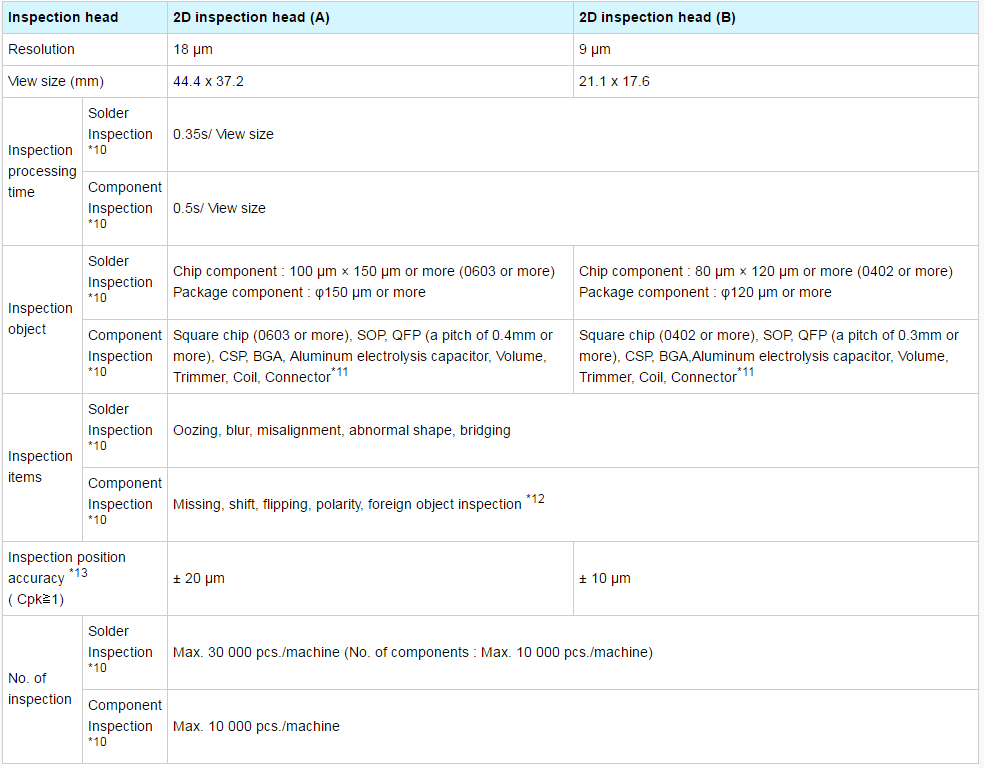

| *10 | : | One head cannot handle solder inspection and component inspection at the same time. |
| *11 | : | Please refer to the specification booklet for details. |
| *12 | : | Foreign object is available to chip components.(Excluding 03015 mm chip) |
| *13 | : | This is the solder inspection position accuracy measured by our reference using our glass PCB for plane calibration. It may be affected by sudden change of ambient temperature. |
*Placement tact time,inspection time and accuracy values may differ slightly depending on conditions
*Please refer to the specification booklet for details.
